DacMate - Analog & Digital Interface

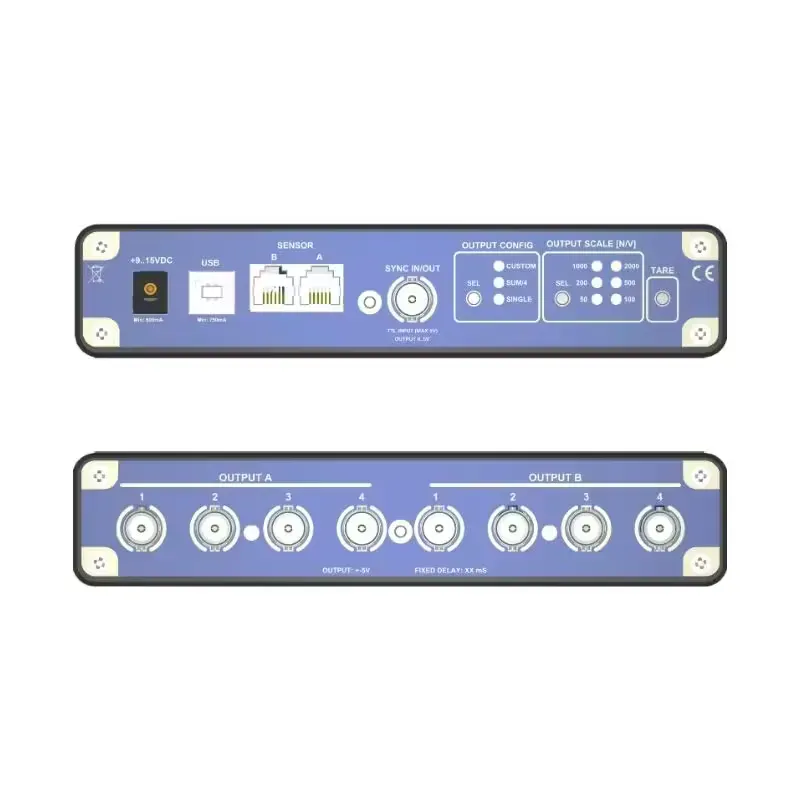

DacMate is a high-performance analog and digital interface designed to connect up to two PlateMate force plates with third-party data acquisition systems. It provides eight 16-bit, low-noise, low-drift analog output channels, enabling accurate and reliable force data integration into external measurement and analysis platforms.

The setup is simple and plug-and-play. Power DacMate through its USB 2.0 connection, connect the PlateMate force plates using the supplied cables, and link the analog outputs to your external DAQ system with BNC coaxial cables. The preferred analog scaling and output configuration can be selected directly using the push buttons on the unit, or configured conveniently through USB using the CC Athletics DacMate tool.

Once configured, DacMate delivers live, scaled, and calibrated analog signals through the selected output channels, providing a straightforward solution for integrating PlateMate force measurements into existing data acquisition and research systems.
